LS-12-XXX LI1

INTENDED USE

LS-12-XXX LI1 is a 12W constant current LED driver with 250 to 500mA output current. With it’s compact dimensions from 100 x 38 x 25mm it is easy to integrate in LED Panel, spot, down light and COB light products. To ensure trouble-free operation, protection is provided against output short circuit and over Load.

CONSTRUCTION

Class II，SELV，independent. Input Voltage 220-240VAC. Protections: SCP/OLP/OVP. Power Factor 0.9C. Efficiency ≥79%, 5 years warranty.

PRODUCT OVERVIEW
Electrical and photometric data
Download Product Brochure

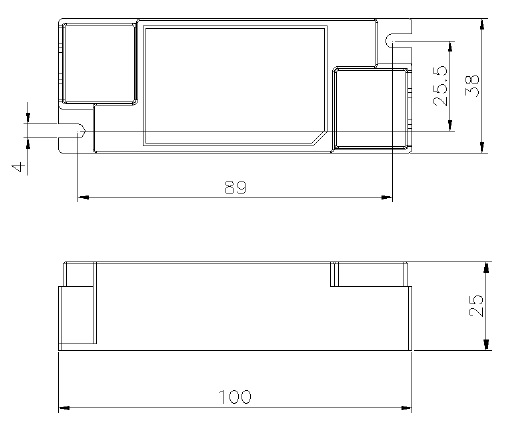

Model and Dimension

ENQUIRY ON THIS PRODUCT

Models

Model number	Input			Output
Model number	Voltage (VAC)	Max.Current (A)	Frequency (Hz)	Constant current (mA)	Normal working voltage (VDC)	No load working voltage (VDC)	Max. Prated(W)
LS-12-250 LI1	220-240	0.09	50/60	250	24-42	50	10.5
LS-12-280 LI1	220-240	0.09	50/60	280	24-42	50	11.8
LS-12-290 LI1	220-240	0.09	50/60	290	24-42	50	12.2
LS-12-300 LI1	220-240	0.09	50/60	300	24-42	50	12.6
LS-12-350 LI1	220-240	0.09	50/60	350	18-35	45	12.3
