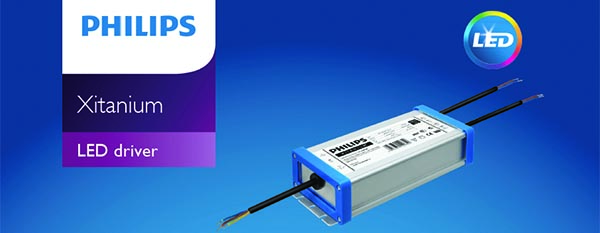

Xitanium Dim 250W 0.70A 1-10V 230V I220

Xitanium Dim 250W 0.70A 1-10V 230V I220

INTENDED USE

LED-based light sources are an excellent solution for outdoor environment. They are long-lasting and require low
maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient
LED Drivers. Robust design; capable of withstanding harsh outdoor conditions. Long lifetime and high survival rate. Superior thermal management suitable for outdoor application. Backed by 5 year warranty from a company you can trust. Consistent waterproof performance through the lifecycle. Application for road and street lighting, area and flood lighting, tunnel lighting and high-bay lighting.



CONSTRUCTION

Proven robustness and reliable electronic driver design. Achieving highest efficiencies based on advance technology. Long lifetime to 50,000 hrs@Tc max. Surge protection; 6kV line-line, 6kV line-earth. Suitable for Class I isolated luminaires. Authorized certificate: ENEC, CB and CE.

Electrical input data

Specification Item Value
Nominal input voltage  220...240VAC
Input Voltage AC 198…264VAC
Operation Voltage AC 85…305VAC
Nominal Input Frequency 50…60Hz
Input Frequency AC 47…63Hz
Nominal Input Current 0.9…1.2A
Maximum Input Current 1.35A
Nominal Input Power 265W
Power Factor ≥0.95
Total Harmonic Distortion  ≤10%
Efficiency 92%

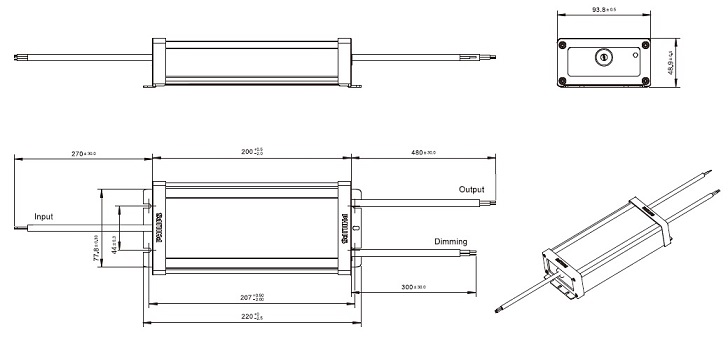

MODEL AND DIMENSION
