REGINA T8

REGINA T8

INTENDED USE

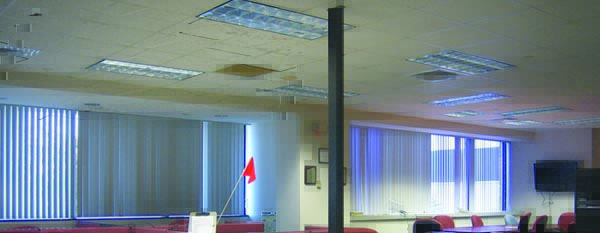

Regina LED series provides an economical energy saving LED high output top mirror recess fixtures. Ideal for retail, educational and commercial applications. 2’x4’ , 2’x2’ , 1’x4’ and 1’x2’ Imperial and Metric sizes available to meet most general illumination layouts.



CONSTRUCTION

Familiar industrial most widely used design for ease of installation to secure fixture to T-bar system with latch system hinged louver frame enable louver frame to hinged down and swing. Housing formed of high quality guage sheet steel. Going through five-stage iron-phosphate pre-treatment ensures superior paint adhesion and rust resistance. Housing painted after fabrication with environmentally freindly, high-gloss, very high reflectivity epoxy powder- coat. High reflectivity mirror reflector achieved with anodized aluminium efficiently directs light downward. Louver cut-out and maximizes sheilding even in shallow plenum applications and softens light distribution to deliver a balance amount of light to both vertical and horizontal surfaces.

DIMENSION OF FITTING

Imperial/T-Bar (2 TUBE)

Product
Code
L
mm
L1
mm
W
mm
H
mm
REG07ITS2220T8 612 600 298 85
REG13ITS4240T8 1222 1210 298 85
REG07ITN2220T8 612 600 605 85
REG13ITN4240T8 1222 1210 605 85

* refer to T8LED tube catalogue for wattage & lumens

Surface (2 TUBE)

Model L
mm
W
mm
H
mm
REG07SS2220T8 612 298 85
REG13SS4240T8 1222 298 85
REG07SN2220T8 612 603 85
REG13SN4240T8 1222 603 85

* refer to T8LED tube catalogue for wattage & lumens
