LS-8-XXX LI

LS-8-XXX LI

INTENDED USE

LS-8-XXX LI is a 8W constant current LED driver that operates from 176-264Vac input with 120 to 400mA output current. With it’s compact dimensions from 100 x 38 x 25mm it is easy to integrate in LED Panel, spot, down lights and COB lights. To ensure trouble-free operation, protection is provided against output short circuit and over Load.



CONSTRUCTION

Class II,SELV,independent. Input Voltage 220-240VAC. Protections: SCP/OLP/OVP. Power Factor 0.9C. Efficiency ≥78%, 5 years warranty.

Models

Model number Input Output
Voltage
(VAC)
Max.Current
(A)
Frequency
(Hz)
Constant
current (mA)
Normal working
voltage (VDC)
No load working
voltage (VDC)
Max.
Prated(W)
LS-8-120 LI 220-240 0.06 50/60 120 27-54 63 6.5
LS-8-150 LI 220-240 0.06 50/60 150 27-53 63 8
LS-8-180 LI 220-240 0.06 50/60 180 22-42 50 7.6
LS-8-200 LI 220-240 0.06 50/60 200 22-42 50 8.4
LS-8-250 LI 220-240 0.06 50/60 250 16-32 42 8

MORE TYPE...

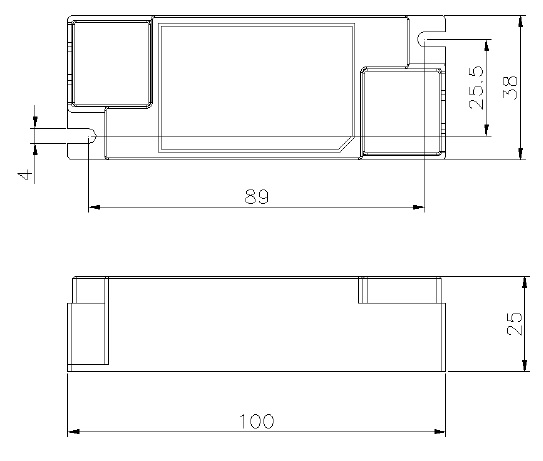

MODEL AND DIMENSION
