RMS-100-1050 IP67 (0-10) L

RMS-100-1050 IP67 (0-10) L

INTENDED USE

The RMS-100-1050 IP67 (0-10) L series is a 100W, constant-current IP67 LED driver that operates from 176-264Vac input with excellent power factor and THD feature. It is created for high bay, tunnel and street lights. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over load, short circuit, and over temperature.



CONSTRUCTION

Input voltage range is 176-264VAC. High efficiency up to 90%. Low THD,10%Max up to 230Vac. Full Power at Wide Output Current Range (Constant Power). 3 In 1 Dimming Function(0-10V/0-100kΩ/PWM). All-Around Protection: OVP,SCP,OTP. Waterproof(IP67) and UL Dry/Damp/Wet Location. Input Surge Protection:6kV line-line,10kV line-earth. High reliability & long lifetime and 5 years warranty.

Models

Model Input
Voltage
Range
Output
Current
Range
Full-power
Current
Range (2)
Output
Voltage
Range
Max
Output
Power
Max
Output
Voltage
Power
Factor
Typical
Efficiency
RMS-100-1050 IP67 L 176~264Vac 0.55A-1.05A 0.7-1.05A 67~143Vdc 100W 160V 0.95 90%
RMS-100-1050 IP67 0-10 L 176~264Vac 0.55A-1.05A 0.7-1.05A 67~143Vdc 100W 160V 0.95 90%

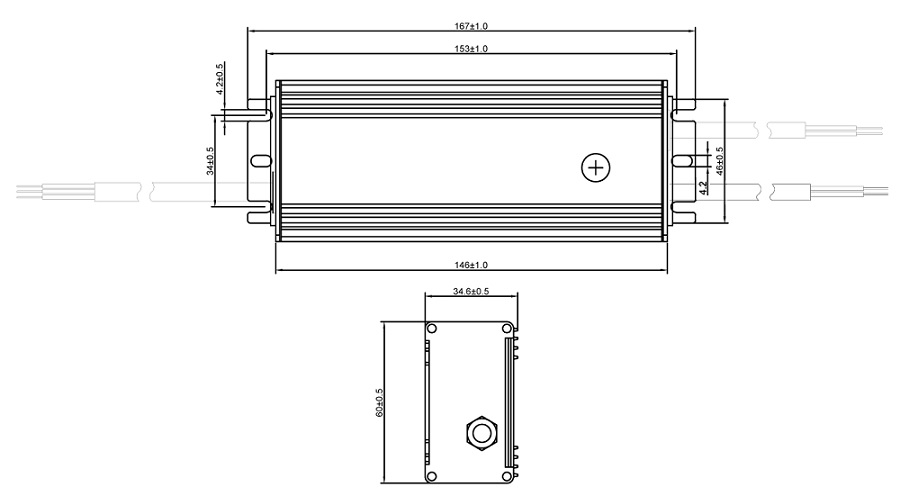

MODEL AND DIMENSION
