LUXTRON STLA007

LUXTRON STLA007

INTENDED USE

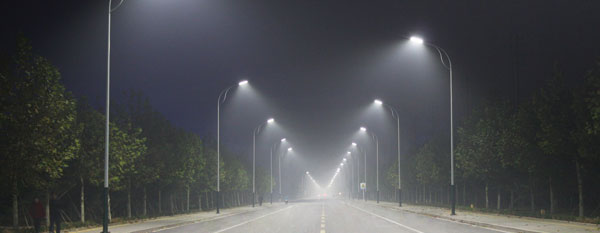

High efficacy of 150lm/W on luminaire level. Ideal for compound, parking areas, street lighting or walkways. It designed to meet various road standard, up to ME1.



CONSTRUCTION

Heavy-duty cast aluminum housing with polyester powder coat paint for superior protection against fade and wear. Offered standard in 2700K, 3000K, 3500K, 4000K and 5700K (+/- 275K) CCT and nominal 70 CRI. LED drivers hard mounted to die-cast aluminum back casting for optimal heat sinking and operation efficiency. Thermal management incorporates both conduction and natural convection to transfer heat rapidly away from the LED source and retain optimal efficiency and light output. Designed to provide 50,000 hours lifespan. Easy maintenance toolless opening of gear compartment. Ambient temperature 35°C.

DIMENSION OF FITTING

130lm

Product
Code
Wattage Lumens Color
Temperature
L
mm
Pole
Diameter(mm)
Weight
kg
STLA00705543D740XXX 55W 7150lm 3000K,4000K 622 60 7.0
STLA00709043D740XXX 90W 11700lm 3000K,4000K 622 60 7.0
STLA00710543D740XXX 105W 13650lm 3000K,4000K 622 60 7.0
STLA00715043D740XXX 150W 19500lm 3000K,4000K 622 60 7.0
STLA00718043D740XXX 180W 23400lm 3000K,4000K 720 60 8.2
STLA00721043D740XXX 210W 27300lm 3000K,4000K 720 60 8.2

*The lumens published here is based on 3000k. For 4000k the efficacy is 135lm/w.
