Xi LP 220W 0.5-1.5A S1 230V I230

Xi LP 220W 0.5-1.5A S1 230V I230

INTENDED USE

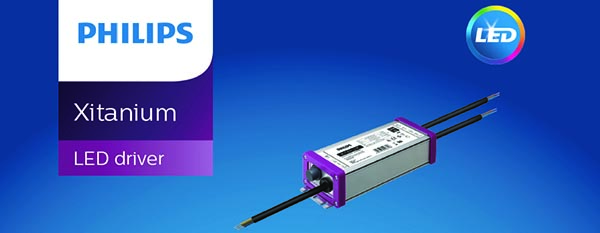

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications.Ultimate robustness, offering peace of mind and lower maintenance costs. Energy savings through high efficiency and via a choice of dimming options. Balanced configurable feature set covering the most common applications. Consistent waterproof performance through the lifecycle. Easy to design-in, configure and install for Class I applications. Application for residential areas, road and street lighting, area and flood lighting, tunnel lighting and high-bay lighting.



CONSTRUCTION

SimpleSet®, wireless configuration interface. High surge protection. Long lifetime and robust protection against
moisture, vibration and temperature. Configurable operating windows (AOC). External control interface (1-10V) available. Digital Configuration Interface (DCI) via multione interface. Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer. Programmable Constant Light Output (CLO). Integrated driver temperature protection.

Electrical input data

Specification Item Value
Rated input voltage range 202...254VAC
Rated input voltage 230VAC
Rated input frequency range 47...63Hz
Power factor ≥ 0.95
Total harmonic distortion ≤ 10
Efficiency ≤ 93
Input voltage AC range 85...305
Input frequency AC range 45...66
Isolation Input to Output Basic

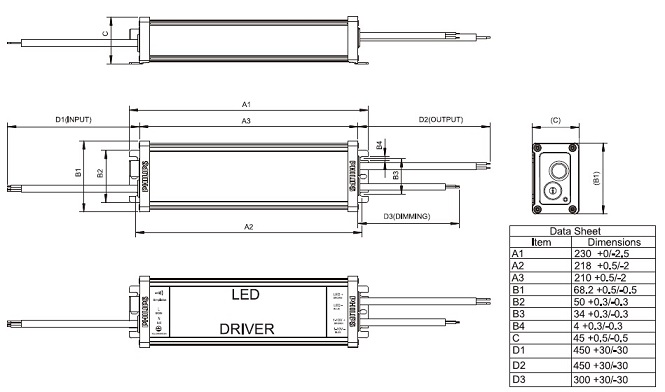

MODEL AND DIMENSION
