LS-20-XXX LI1

LS-20-XXX LI1

INTENDED USE

LS-20-XXX LI1 is a 20W constant current LED driver that operates from 176-264Vac input with 300 to 700mA output current. With it’s compact dimensions from 100 x 38 x 25mm it is easy to integrate in LED Panel and down light products. To ensure trouble-free operation, protection is provided against output short circuit and over Load.



CONSTRUCTION

Class II,SELV,independent. Input Voltage 220-240VAC. Protections: SCP/OLP/OVP. Power Factor 0.9C. Efficiency ≥85%, 5 years warranty.

Models

Model number Input Output
Voltage
(VAC)
Current
(A)
Frequency
(Hz)
Constant
current (mA)
Normal working
voltage (VDC)
No load working
voltage (VDC)
Max.
Prated(W)
LS-20-300 LI1 220-240 0.16 50/60 300 30-50 60 15
LS-20-350 LI1 220-240 0.16 50/60 350 30-50 60 17.5
LS-20-400 LI1 220-240 0.16 50/60 400 30-50 60 20
LS-20-450 LI1 220-240 0.16 50/60 450 28-46.5 57 21
LS-20-500 LI1 220-240 0.16 50/60 500 25-42 50 21

MORE TYPE...

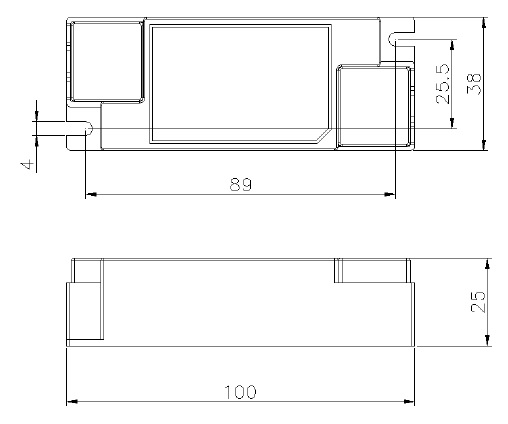

MODEL AND DIMENSION
