LS-16-XXX LI1

LS-16-XXX LI1

INTENDED USE

LS-16-XXX LI1 is a 16W constant current LED driver with 300 to 700mA output current. With it’s compact dimensions from 100 x 38 x 25mm it is easy to integrate in LED Panel, spot, down lights and COB lights. To ensure trouble-free operation, protection is provided against output short circuit and over Load.



CONSTRUCTION

Class II,SELV,independent. Input Voltage 220-240VAC. Protections: SCP/OLP/OVP. Power Factor 0.9C. Efficiency ≥85%, 5 years warranty.

Models

Model number Input Output
Voltage
(VAC)
Current
(A)
Frequency
(Hz)
Constant
current (mA)
Normal working
voltage (VDC)
No load working
voltage (VDC)
P(W)
LS-16-300 LI1 220-240 0.12 50/60 300 20-46 56 13.8
LS-16-350 LI1 220-240 0.12 50/60 350 20-46 56 16.1
LS-16-390 LI1 220-240 0.12 50/60 390 24-42 50 16.4
LS-16-400 LI1 220-240 0.12 50/60 400 24-42 50 16.8
LS-16-450 LI1 220-240 0.12 50/60 450 21.5-36 46 16.2

MORE TYPE...

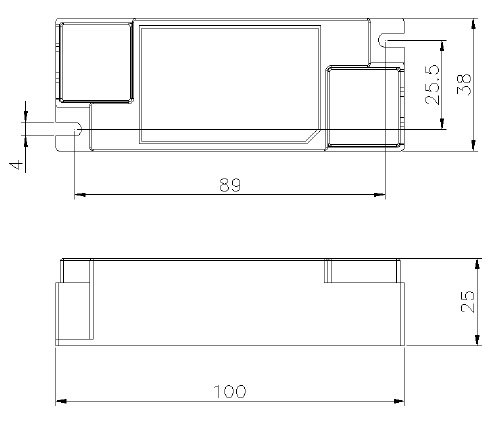

MODEL AND DIMENSION
