REGINA LOW BRIGHT T5

REGINA LOW BRIGHT T5

INTENDED USE

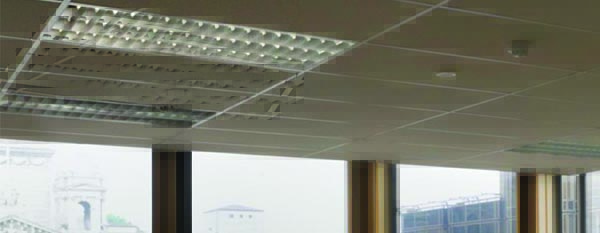

The Regina Low Bright series of luminaries is suitable for general offices & VDU workstation areas. Louver material is specular cambered shaped (V). Ideal for retail, educational and commercial applications requiring lighting load as low as 2 watts/square meter/ 100 lux. 2’x4’ , 2’x2’ , 1’x4’ and 1’x2’ Imperial and Metric sizes available to meet most general illumination layouts.



CONSTRUCTION

Familiar industrial most widely used design for ease of installation to secure fixture to T-bar system with latch system hinged louver frame enable louver frame to hinged down and swing. Housing formed of high quality guage sheet steel. Going through five-stage iron-phosphate pre-treatment ensures superior paint adhesion and rust resistance. Housing painted after fabrication with environmentally freindly, high-gloss, very high reflectivity epoxy powder- coat. High reflectivity mirror reflector achieved with anodized aluminium efficiently directs light downward. Louver cut-out and maximizes sheilding even in shallow plenum applications and softens light distribution to deliver a balance amount of light to both vertical and horizontal surfaces.

DIMENSION OF FITTING

Imperial/T-Bar (2 TUBE)

Model Wattage L
mm
L1
mm
W
mm
H
mm
REG07VITS2214 2X14W 612 600 298 85
REG13VITS2228 2X28W 612 600 298 85
REG13VITS4228 2X28W 1222 1210 298 85
REG13VITS4254 2X54W 1222 1210 298 85
REG07VITN2214 2X14W 612 600 605 85
REG07VITN2224 2X24W 612 600 605 85
REG13VITN4228 2X28W 1222 1210 605 85
REG13VITN4254 2X54W 1222 1210 605 85
MORE TYPE...
