LUXTRON eLEDtra

LUXTRON eLEDtra

INTENDED USE

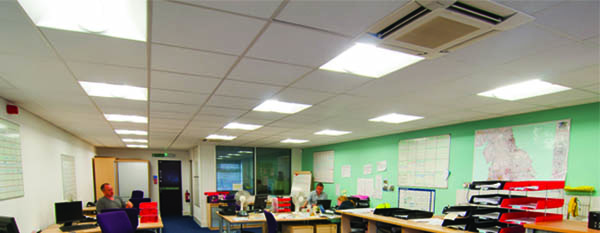

The low profile modern LED troffer, more energy savings and longer life span with better CRI compared to conventional lighting system. High brightness performance design come with surfaced, wood ceiling, and T-Bar mounting with modern stylish design and good visual comfort. Ribbed linear diffuser provides more light and a fresh look to interior.



CONSTRUCTION

Die form of 24 gauge cold rolled steel body. Reflector is 91% reflectance baked with white acrylic matte paint finish. High reflectance with white interior reflector. Linear ribbed diffuser that will act as lamp shield to conceal glare. All steel surfaces are painted after fabrication with high gloss baked white matte powder painted.

DIMENSION OF FITTING

IMPERIAL

Model Wattage Lumens W
mm
L
mm
H
mm
ELEDTRAIS11N20 20W 2040lm 305 605 50
ELEDTRAIN21N30 30W 3060lm 605 605 50
ELEDTRAIN21N40 40W 4080lm 605 605 50
ELEDTRAIS21N30 30W 3060lm 305 1210 50
ELEDTRAIS21N40 40W 4080lm 305 1210 50
ELEDTRAIN21N60 60W 6120lm 605 605 50
ELEDTRAIS21N60 60W 6120lm 305 1210 50
