LUXTRON VECO UFO

INTENDED USE

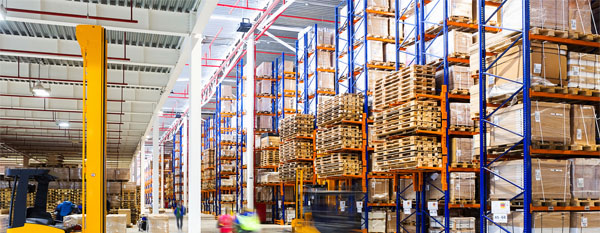

Economical LED replacement for traditional or conventional low bay or high bay system such as HID and T8/T5 fluorescent. Application include manufacturing, warehousing , commercial, retail, and other large indoor spaces. Generates high efficacy of lumens/watt output giving you an incredible dollar/lumens in your investment with shortest ROI without sacrificing the performance. Lifespan of 50,000 hours.



CONSTRUCTION

It ease the installation by securing the luminaire by the suspended mount eye bolt then to hook to the c-channel using chain, or bracket. Diecasting aluminium housing allow superior thermal management to reduce LED and driver temperature providing years of trouble-free operation. Different beam distributions available in narrow, focus , wide and asymmetric spread to meet horizontal and vertical light level requirements.

DIMENSION OF FITTING

120lm/w

Model Watt
W
Lumens Color
Temperature
Diameter
mm
Height
mm
Weight
KG
HBVUMN1050Q76 50W 6100lm 3000K, 4000K, 5700K 265 135 3.1
HBVUMN1100Q76 100W 12200lm 3000K, 4000K, 5700K 265 135 3.1
HBVUMN1150Q76 150W 18300lm 3000K, 4000K, 5700K 265 135 3.1
HBVULN1200Q76 200W 24400lm 3000K, 4000K, 5700K 350 170 6.0
HBVULN1270Q76 268W 32696lm 3000K, 4000K, 5700K 350 170 6.0

140lm/w

Model Watt
W
Lumens Color
Temperature
Diameter
mm
Height
mm
Weight
KG
HBVUMN2040Q76 38W 5282lm 3000K, 4000K, 5700K 265 135 3.1
HBVUMN2075Q76 75W 10425lm 3000K, 4000K, 5700K 265 135 3.1
HBVUMN2120Q76 117W 16263lm 3000K, 4000K, 5700K 265 135 3.1
HBVUMN2150Q76 151W 20989lm 3000K, 4000K, 5700K 265 135 3.1
HBVULN2200Q76 201W 27939lm 3000K, 4000K, 5700K 350 170 6.0
HBVULN2250Q76 251W 34889lm 3000K, 4000K, 5700K 350 170 6.0
HBVULN2300Q76 302W 41978lm 3000K, 4000K, 5700K 350 170 6.0
HBVULN2350Q76 352W 48928lm 3000K, 4000K, 5700K 350 170 6.0
Specifications and Dimension subject to change without notice
